Home / Equipment / TL 22.10

Platform Basket
TL 22.10

72ft Arborist by Arborists - Built for Tree Work

72 ft Working Height
34 ft Outreach
300 lbs Basket Capacity
35" Min. Width
Request Quote View Spec Sheet
Platform Basket TL 22.10 Arborist by Arborists
Available for Sale & Rent

Why Choose the TL 22.10

The most ruggedized tracked spider lift for professional tree work

Built for the Extreme Rigors of Tree Work

The TL 22.10 72ft Arborist by Arborists is the most ruggedized tracked spider lift on the market. Designed in collaboration between Tracked Lifts and Platform Basket, this machine features fully armored hydraulic systems, motor, and electrical components to increase operator safety and reduce damage risk during demanding tree operations.

Simplified and Ruggedized

All hydraulic systems and electrical components are fully armored for extreme durability in tree work environments

34 ft Unrestricted Outreach

Full boom articulation at max load with simplified single-position outrigger spread

Live Hydraulic Redundancies

Safety-first design with emergency lowering system provides utmost safety and dependability

Kubota Diesel Powered

15 HP Kubota diesel engine for reliable all-weather, all-terrain operation

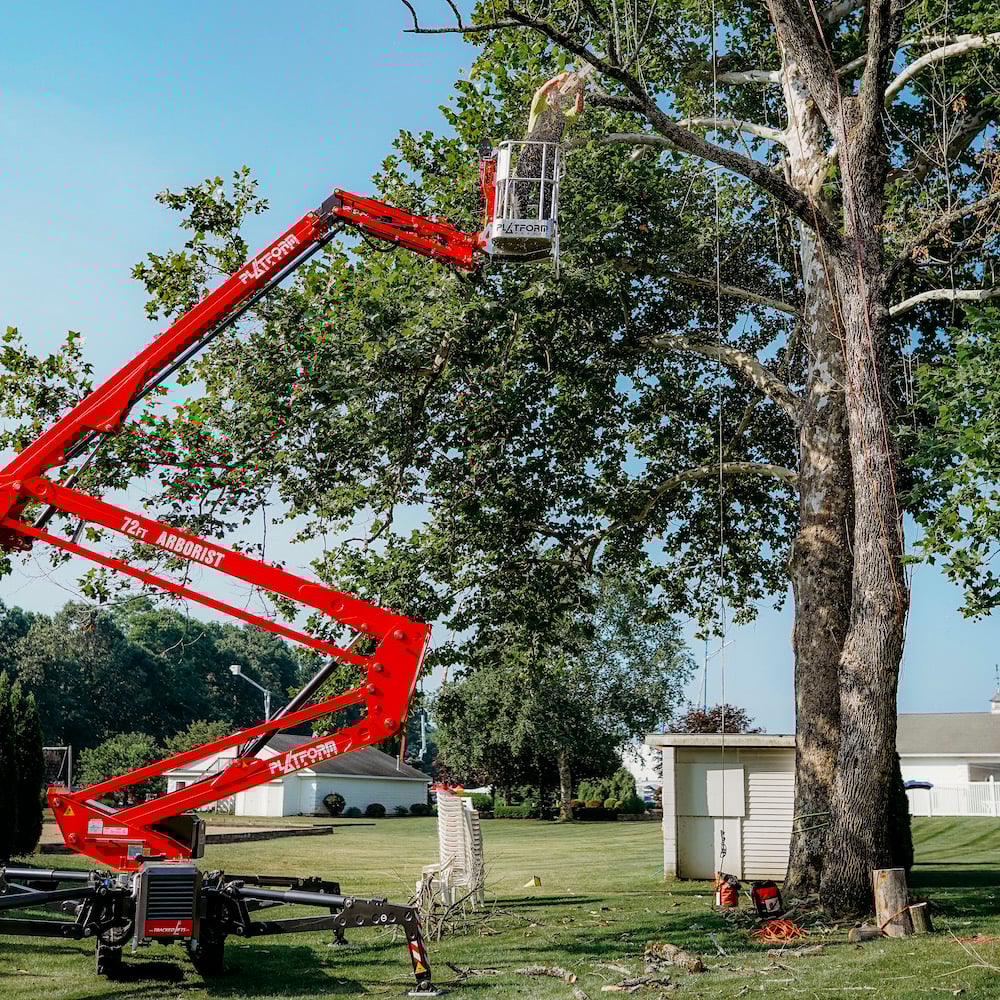

TL 22.10 in Action

Technical Specifications

Comprehensive performance data

Performance

Max Working Height 72 ft
Max Outreach 34 ft unrestricted
Max Basket Load 300 lbs
Basket Size 2 ft 7 in x 2 ft 3 in (1-man)
Turret Rotation 360 deg non-continuous

Dimensions

Traveling Length 19 ft 3 in (20 ft 7 in w/ basket)
Traveling Height (Narrow) 6 ft 9 in
Traveling Height (Wide) 7 ft 1 in
Min. Width 35 in
Outrigger Spread 14 ft 7 in x 14 ft 7 in
Total Weight 6,900 lbs

Power and Features

Engine Kubota Diesel, 15 HP
Emergency System 12V DC Descent
Gradability (Across Slope) 31% (17 deg)
Gradability (Up/Down) 29% (16 deg)
Deploy on Slopes Up to 31% (17 deg)

Product Gallery

See the TL 22.10 Arborist by Arborists in action

TL 22.10 Arborist Work

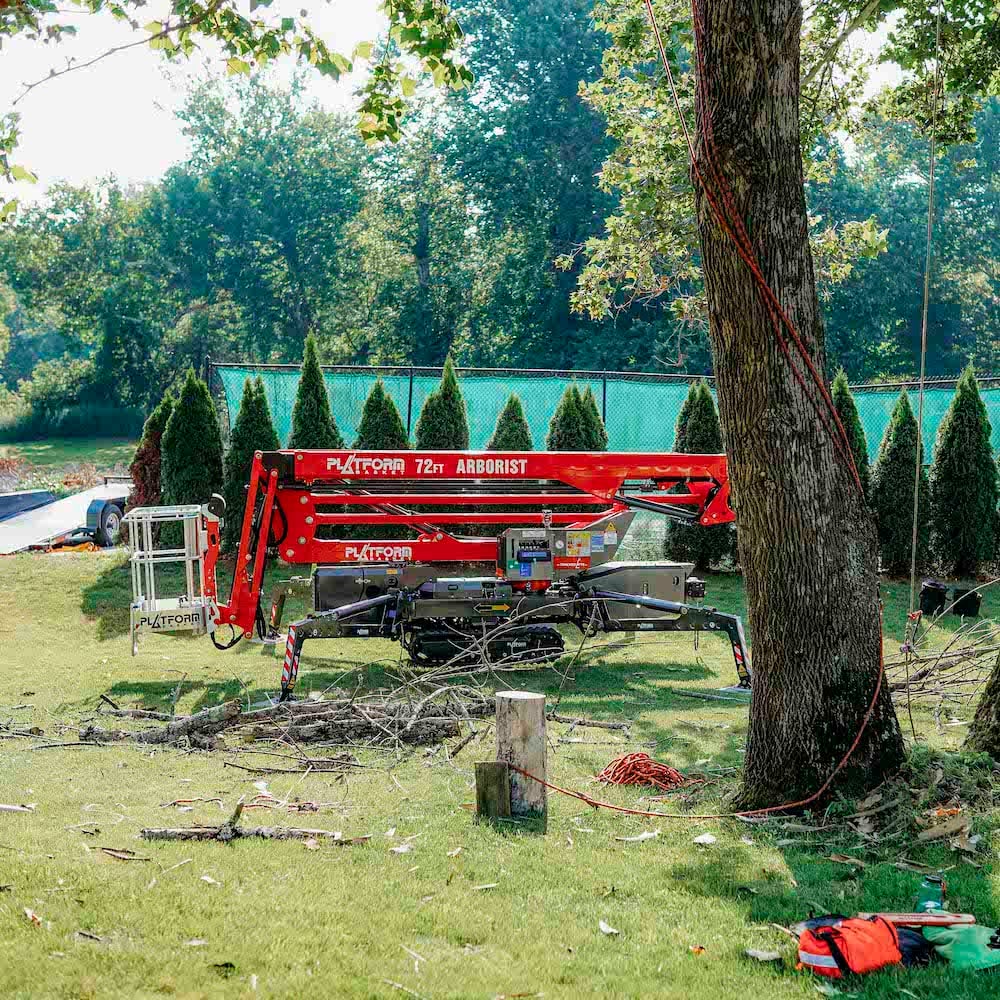

TL 22.10 Tree Services

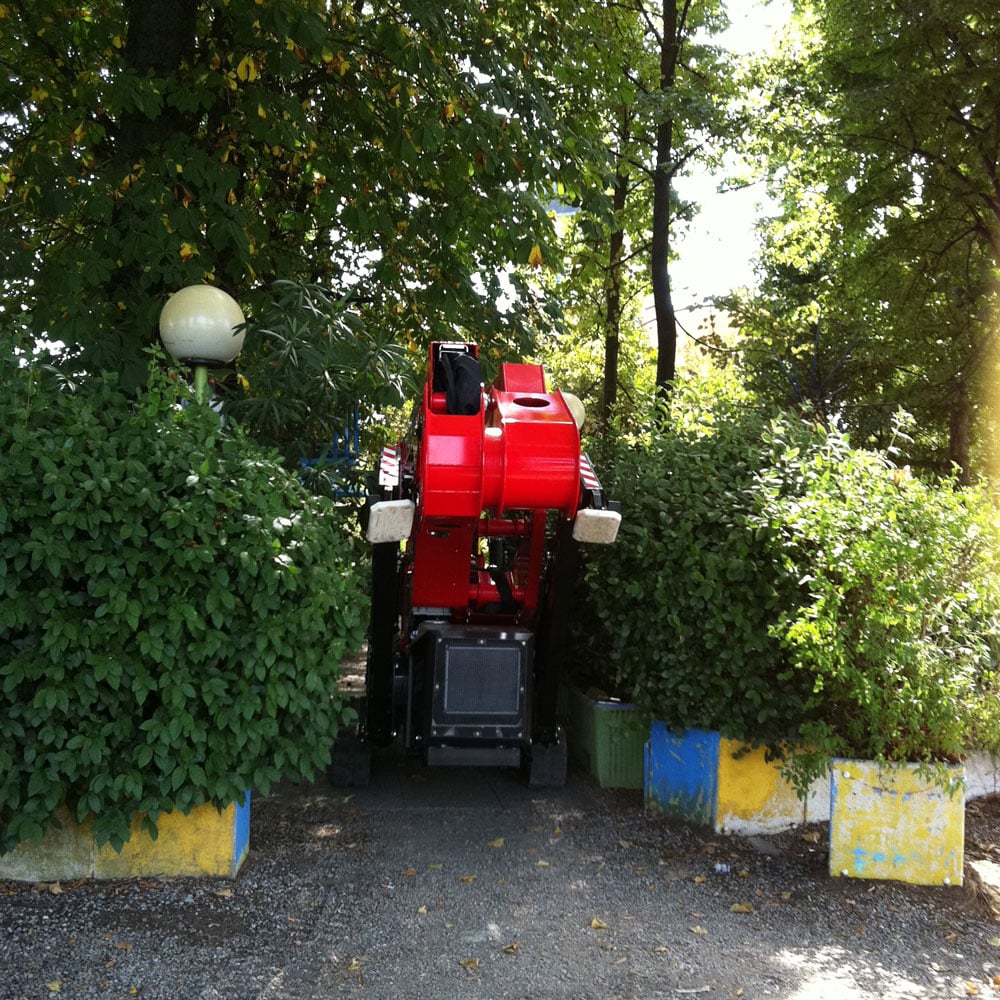

TL 22.10 Extended Reach

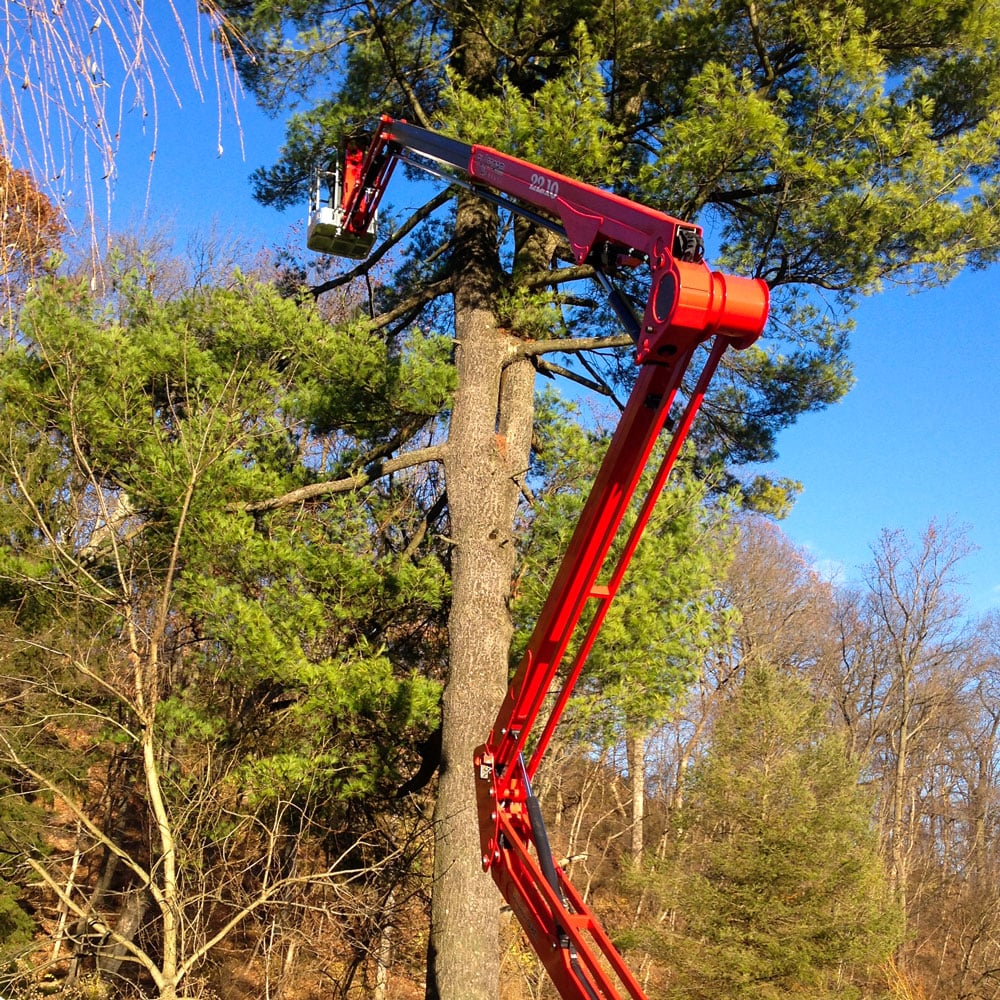

TL 22.10 Professional Operation

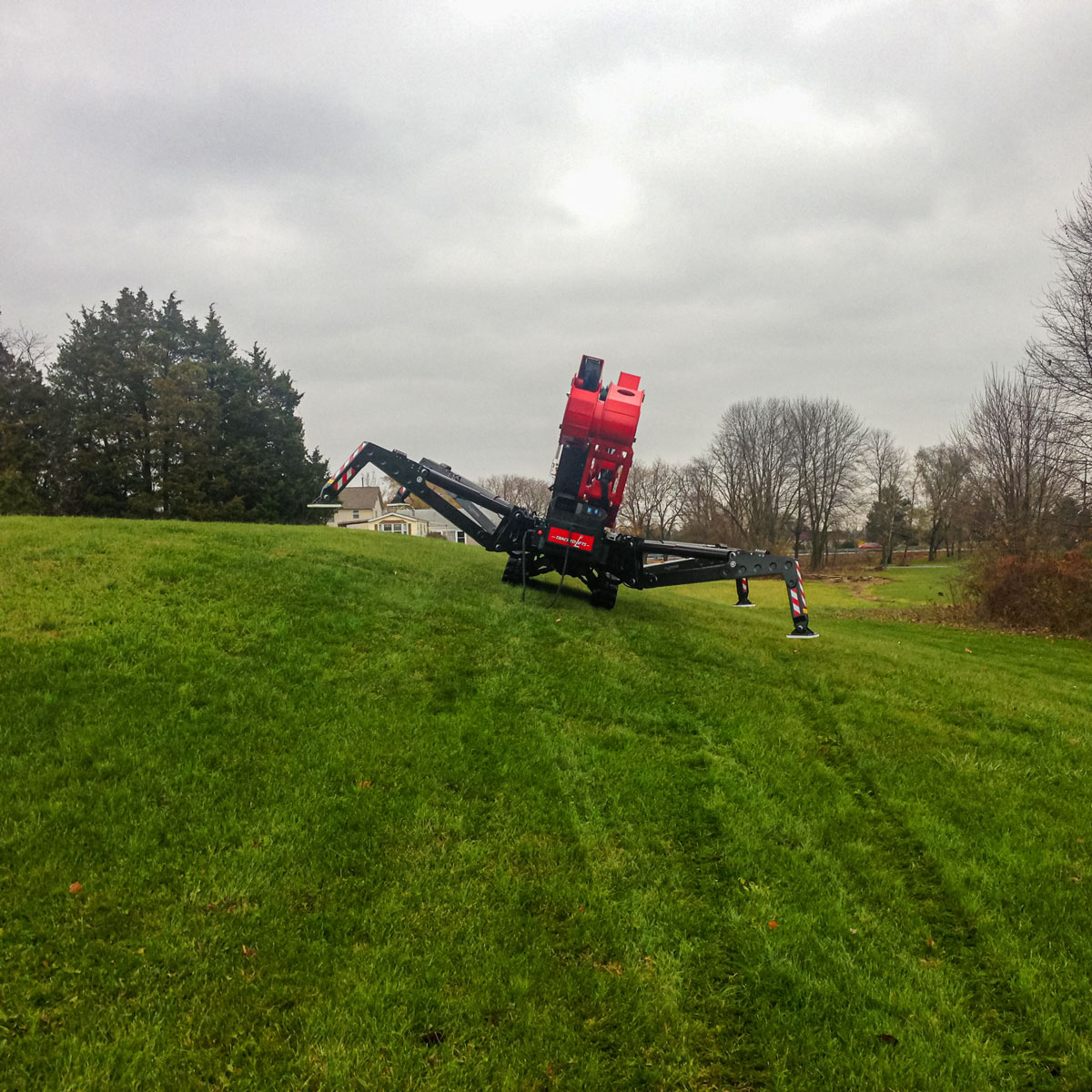

TL 22.10 Field Work

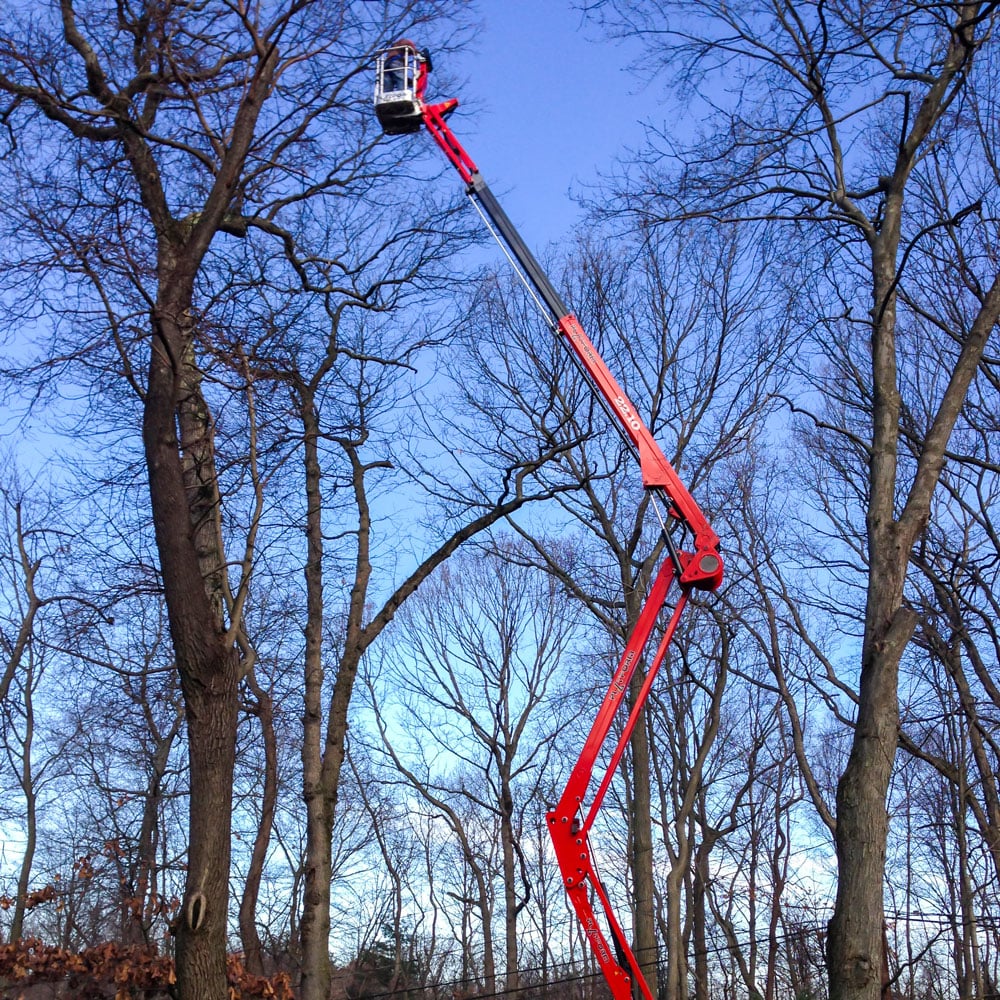

TL 22.10 All-Terrain

Perfect Applications

Designed specifically for professional arborists and tree care

Professional Arboriculture

Purpose-built for the extreme demands of tree work with armored components and simplified systems for maximum reliability.

Tree Removal and Pruning

72 ft working height and 34 ft unrestricted outreach provides safe access to the most challenging tree work scenarios.

All-Terrain Operations

Deploy on slopes up to 31% with rugged tracks designed for challenging ground conditions and remote locations.

All-Weather Work

Kubota diesel power and ruggedized design ensures reliable operation in rain, heat, cold, and challenging conditions.

Restricted Access Sites

35 inch minimum width allows access through standard gates, fences, and narrow passages to reach backyard trees.

Storm Damage Response

Quick deployment and reliable operation makes this the ideal machine for emergency storm damage tree work.
