Platform Basket
TL 27.14

89' Arborist - Ultimate Reach & Performance

89 ft Working Height
50 ft Max Outreach
507 lbs Basket Capacity
35" Min. Width
Platform Basket TL 27.14
Available for Sale & Rent

Why Choose the TL 27.14

Maximum reach with compact design for professional arborists

Ultimate Reach in a Compact Package

The Platform Basket TL 27.14 is an articulated tracked lift equipped with a double scissor mechanism, offering 30 feet up-and-over clearance. Weighing just 11,500 lbs, this arborist lift reaches an impressive 89 feet working height while maintaining a compact 35-inch width that passes through standard doors.

Industry-Leading Height

89 ft working height with up to 50 ft outreach for maximum versatility

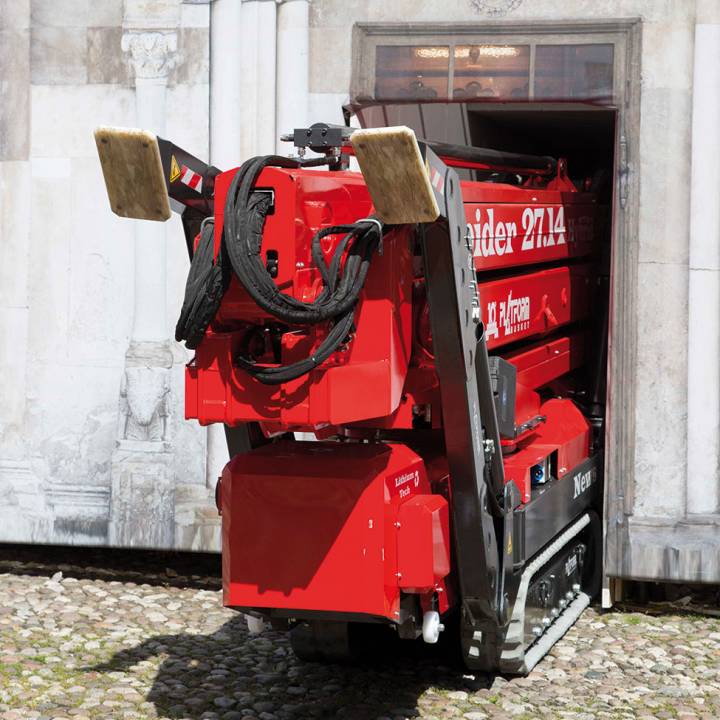

Compact Design

Only 35 inches wide in stowed position - fits through standard doors

Automatic Stabilization

All-automatic stabilization with automatic side outreach handling over 360 degrees

Powerful Engine

Kubota Diesel 22 HP engine for reliable all-terrain operation

Technical Specifications

Detailed performance and dimension data

Performance

Max Working Height 89 ft
Max Outreach 50 ft
Max Basket Load 507 lbs
Basket Size 2'7" x 2'3" (1-man)
Basket Rotation +/- 90°
Turret Rotation 360° non-continuous

Dimensions

Traveling Length 20'7" (23'3" with basket)
Traveling Height 6'6"
Min. Width 35"
Outrigger Spread (Wide) 15'6" x 17'2"
Outrigger Spread (Narrow) 11'5" x 21'
Total Weight 11,500 lbs

Power & Features

Engine Kubota Diesel, 22 HP
Emergency System 12V DC Descent
Up-and-Over Clearance 30 ft
Gradability (Across Slope) 31% (17°)
Gradability (Up/Down) 31% (17°)
Deployment on Slopes Up to 31% (17°)

Perfect Applications

Ideal for demanding professional applications

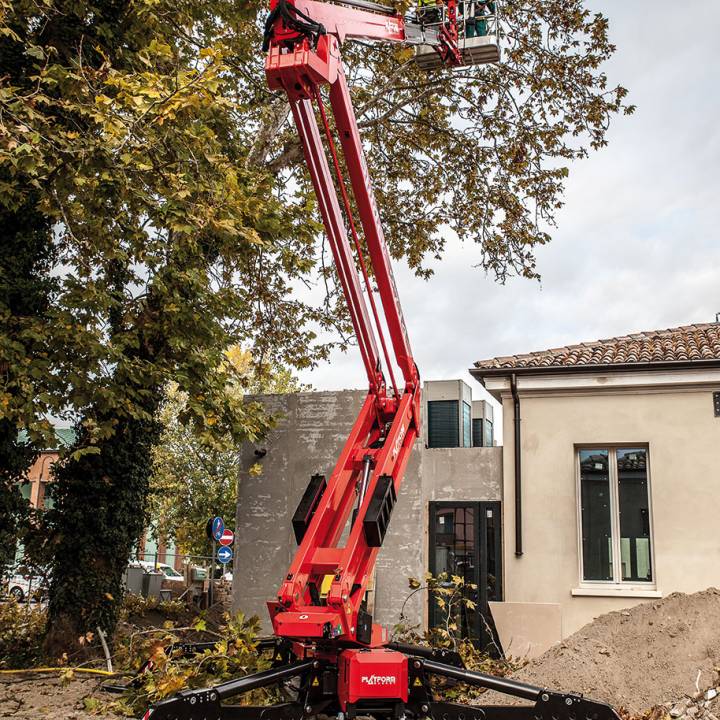

Professional Arboriculture

89 ft reach makes this ideal for the tallest trees, with 30 ft up-and-over clearance for complex canopy work.

Tree Removal & Pruning

50 ft outreach provides safe access to the most challenging tree work scenarios without repositioning.

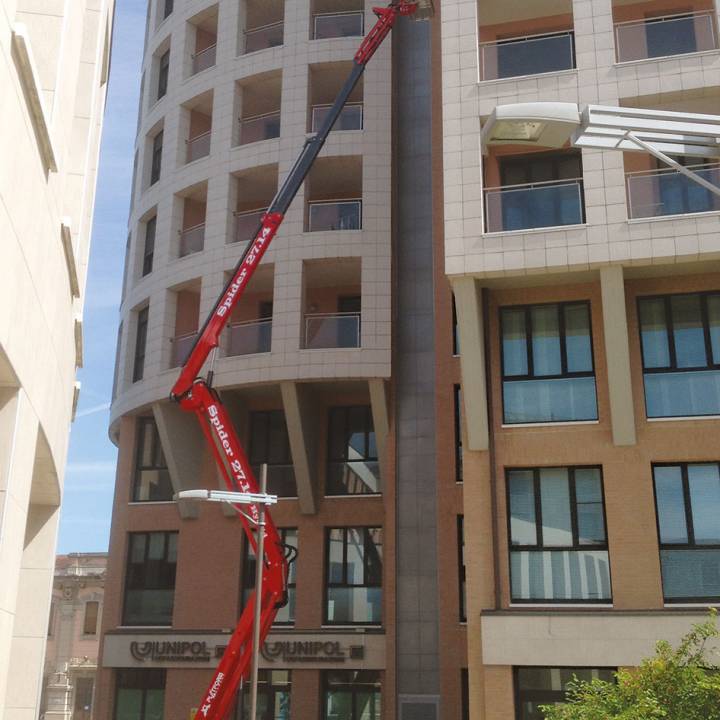

High-Rise Maintenance

Perfect for multi-story building maintenance, facade work, and exterior inspections up to 9 stories.

Utility Line Work

Exceptional reach for power line maintenance, telecommunications, and utility infrastructure work.

Restricted Access Sites

35 inch minimum width allows access through standard gates, fences, and narrow passages.

Industrial & Construction

Heavy-duty 507 lb basket capacity supports tools and equipment for industrial applications.

Ready to Elevate Your Work?

Contact us today for pricing, availability, or to schedule a demonstration of the TL 27.14
